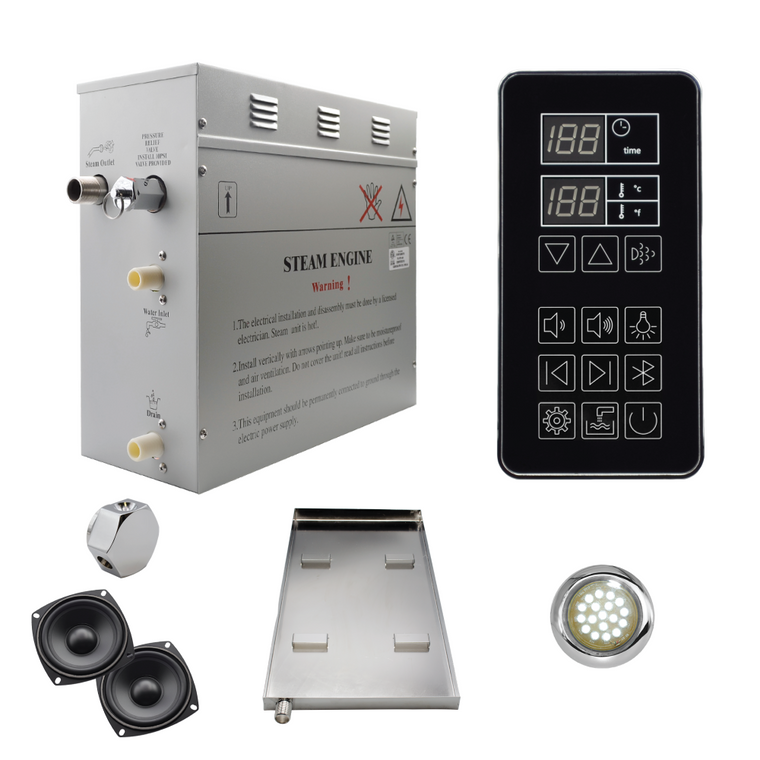

Superior SteamPoint Plus Steam Generator Kit with Drip Pan and White Light

Superior SteamPoint Series provide a newly designed keypad. Touch screen navigation makes it easier to operate steam shower while in use. All options are visible and user-friendly. Redesigned power cord eliminates installation errors and provides fast and easy connection. Superior SteamPoint Steam Generator is equipped with Auto-Drain to produce Always Fresh and Healthy Steam and it is ETL Certified!

• Steam generator is ETL certified
• SteamPoint Plus Digital Keypad

• Bluetooth Audio
• New! Upgraded keypad connection cord for faster and easier installation
• Keypad can be mounted in or outside of the steam shower
• Encore Keypad has a built-in Temperature Sensor

TECHNICAL INFORMATION

24kw TECHNICAL INFORMATION

• Two 12kW Generators with each dimensions: 20 ½”L x 9 ½”W x 15 ½”H
• Steam outlet per generator: two ¾" outlet
• Total cubic footage steam room: 700-1400
• 20 feet of connecting wire for control panel
• 12 V light output wire
• Each Generator: 220-volt/6-2 wire-60amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings.

18kw TECHNICAL INFORMATION

• Two 9kW Generators with each dimensions: 19 ½”L x 6 ½”W x 14 ½”H
• Steam outlet per generator: single ¾" outlet
• Total cubic footage steam room: 460-920
• 20 feet of connecting wire for control panel
• 12 V light output wire
• Each Generator: 220-volt/8-2 wire-50amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings.

12kw TECHNICAL INFORMATION

• Dimensions: 20 ½”L x 9 ½”W x 15 ½”H
• Steam outlet: two ¾" outlets
• Cubic footage steam room: 460-700 ft3
• 20 feet of connecting wire for control panel
• 12 V light output wire
• 220-volt/6-2 wire-60amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings.

9kw TECHNICAL INFORMATION

• Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
• Steam outlet: single ¾" outlet
• Cubic footage steam room: 320-460 ft3
• 20 feet of connecting wire for control panel
• 12 V light output wire
• 220-volt/8-2 wire-50amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings.

6kw TECHNICAL INFORMATION

• Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
• Steam outlet: single ¾" outlet
• Cubic footage steam room: 140-320 ft3
• 20 feet of connecting wire for control panel
• 12 V light output wire
• 220-volt/10-2 wire-30amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings
