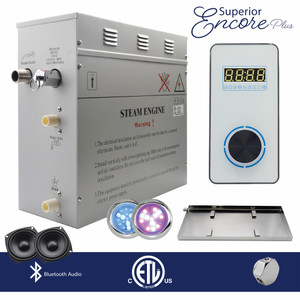

Encore Plus Steam Generator Kit with Vertical Bluetooth Keypad, Drip Pan & White LED Lights

Steam Planet is introducing a new Steam Generator Series! Superior Encore Plus is a reengineered series which comes with multiple upgrades for easier installation. Our new keypads have a built-in thermostat, so there is no need to make extra holes for the temperature probe. Major upgrade was made to a keypad connection cable for faster and easier keypad installation! Superior Encore Plus keypad has Bluetooth Audio feature, just connect the phone and listen to your favorite music! Steam Generator is equipped with Auto-Drain to produce Always Fresh and Healthy Steam and it is ETL Certified.

• Steam generator is ETL certified
• Encore Digital Keypad

• Bluetooth Audio
• Drip Pan
• White LED Lights
• New! Upgraded keypad connection cord for faster and easier installation
• Keypad can be mounted in or outside of the steam shower
• Encore Keypad has a built-in Temperature Sensor

TECHNICAL INFORMATION

24kw TECHNICAL INFORMATION

• Two 12kW Generators with each dimensions: 20 ½”L x 9 ½”W x 15 ½”H
• Steam outlet per generator: two ¾" outlet
• Total cubic footage steam room: 700-1400
• 20 feet of connecting wire for control panel
• 12 V light output wire
• Each Generator: 220-volt/6-2 wire-60amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings.

18kw TECHNICAL INFORMATION

• Two 9kW Generators with each dimensions: 19 ½”L x 6 ½”W x 14 ½”H
• Steam outlet per generator: single ¾" outlet
• Total cubic footage steam room: 460-920
• 20 feet of connecting wire for control panel
• 12 V light output wire
• Each Generator: 220-volt/8-2 wire-50amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings.

12kw TECHNICAL INFORMATION

• Dimensions: 20 ½”L x 9 ½”W x 15 ½”H
• Steam outlet: two ¾" outlets
• Cubic footage steam room: 460-700 ft3
• 20 feet of connecting wire for control panel
• 12 V light output wire
• 220-volt/6-2 wire-60amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings.

9kw TECHNICAL INFORMATION

• Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
• Steam outlet: single ¾" outlet
• Cubic footage steam room: 320-460 ft3
• 20 feet of connecting wire for control panel
• 12 V light output wire
• 220-volt/8-2 wire-50amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings.

6kw TECHNICAL INFORMATION

• Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
• Steam outlet: single ¾" outlet
• Cubic footage steam room: 140-320 ft3
• 20 feet of connecting wire for control panel
• 12 V light output wire
• 220-volt/10-2 wire-30amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings
